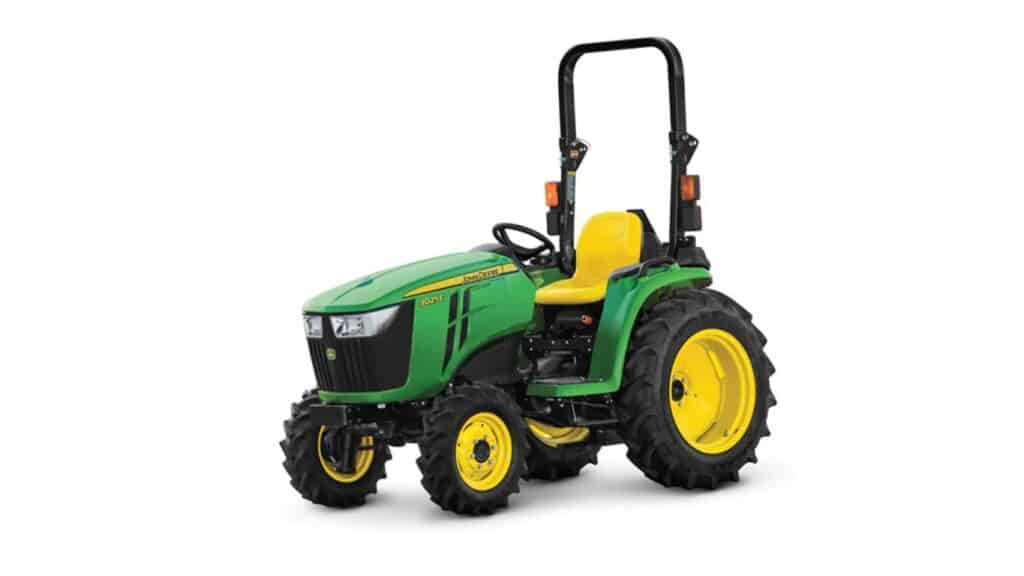

John Deere 3025E Compact Utility Tractor
- Standard four-wheel drive (4WD) for maximum traction
- Tightest turning radius in its horsepower class
- Hydro transmission with Twin Touch™ pedals for ease of use
Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
iMatch Quick-Hitch (LVB25976)
One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.
The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.
- All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.
NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).
- Upper bushing
- Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
- Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
- Lower bushings
- Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
- Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)
| Engine - Number of cylinders: | Three |
|---|---|
| Engine - Bore and stroke: | 88 x 90 mm 3.46 x 3.54 in. |
| Engine - Engine model: | 3TNV88F-EPJT2 |
| Engine - Engine torque at rated speed: | 72.4 Nm 53.4 lb-ft |
| Transmission - Differential lock: | Yes |
| Dimensions - Front axle clearance: | Minimum: 299 mm 11.8 in. Maximum: 333 mm 13.1 in. |
| Hydraulics - Pump rated output: | Steering 15 L/min 4 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm |
| Engine - Family: | EYDXL1.64NDA FYDXL1.64NDA GYDXL1.64NDA |
| Transmission - Cruise control: | Optional |
| Electrical - Battery size: | 500 CCA |
| Dimensions - Approximate shipping weight (open-station; cab): | OOS: 1181 kg 2603 lb Cab: Not applicable |
| Tires - Rear: | R1 Bar: 11.2-24 R3 Turf: 41x14-20 R4 Industrial: 15-19.5 R4 Industrial: 43x16-20 |
| Transmission - Axle capacity: | Front 880 kg 1940 lb Rear 1200 kg 2645 lb |
| Key Specs - Power take-off (PTO) power: | 13 kW 17.4 hp |
| Engine - Cylinders/displacement: | 3 / 1.64 L 3 / 100.2 cu in. |
| Transmission - Steering: | Power steering |
| Dimensions - Wheelbase: | 1593 mm 62.7 in. |
| Key Specs - Engine power (gross): | SAE J1995 rated power: 18.2 kW 24.4 hp 24.7 PS at 2400 rpm |
| Key Specs - Standard transmission; forward/reverse: | Hydrostatic transmission (HST) |
| Transmission - Creeper: | No |
| Key Specs - Steering hydraulics: | 15 L/min 4 gpm |
| Hydraulics - Draft control sensing: | Position control |
| Power take-off (PTO) - Standard: | Rear - 540 rpm |
| Key Specs - Cruise control: | Optional |
| Electrical - Alternator (12-V): | 55 amp |
| Dimensions - Turning radius without brakes: | 2.9 m 9.4 ft |
| Transmission - Final drive: | Spur gear |
| Hydraulics - Remote control valves available: | Up to two (optional) |
| Key Specs - Hitch type: | Category 1 |
| Engine - Type: | Diesel |
| Engine - Engine power (gross): | SAE J1995 rated power: 18.2 kW 24.4 hp 24.7 PS at 2400 rpm |
| Operator station - Gear shift location - console/floor: | Left-hand side |
| Transmission - Left-hand reverser: | No |
| Engine - Injection pump type: | Direct injection |
| Power take-off (PTO) - Clutch: | Wet disk |
| Fluid capacities - Crankcase with filter: | 4.5 L 4.8 qt |
| Hydraulics - Maximum operating pressure: | 172 bar 2495 psi |
| Electrical - Starter size: | 1.4 kW 1.9 hp |
| 3-point hitch - Type: | Category 1 |
| Engine - Air cleaner: | Dual element |
| Engine - Compression ratio: | 19.1:1 |
| Power take-off (PTO) - Brake (for mid and rear PTO): | Wet disk |
| Power take-off (PTO) - Control: | Independent |
| Final drive - Type: | Spur gear |
| Engine - Emissions compliance: | Final Tier 4 |
| Key Specs - Approximate shipping weight (open-station; cab): | Open operator station (OOS): 1181 kg 2603 lb Cab: Not applicable |
| Engine - Cooling system: | Water pump |
| Engine - Manufacturer: | Yanmar |
| Fuel system - Type: | Direct injection |
| Hydraulics - Pump type: | Dual gear |
| Engine - Cylinder liners: | Cast-in-block |
| Engine - Aspiration: | Natural |
| Operator station - Platform - flat/straddle: | Straddle |
| Key Specs - Implement hydraulics: | 20.2 L/min 5.3 gpm |
| Transmission - Standard transmission; forward/reverse: | Hydrostatic transmission (HST) |
| Operator station - Rollover protective structure: | Type Foldable |
| Engine - Rated engine speed: | 2400 rpm |
| Transmission - Brakes: | Wet disk |
| Key Specs - Wheelbase: | 1593 mm 62.7 in. |
| Engine - Power take-off (PTO) power: | 13 kW 17.4 hp |
| Engine - Fuel tank capacity: | 28.5 L 7.5 U.S. gal. |
| Engine - Lubrication: | Pressurized |
| 3-point hitch - Lift capacity, 24-in. behind link arms: | 615 kg 1356 lb |
| Hydraulics - Type: | Open center |
| Key Specs - Lift capacity, 24-in. behind link arms: | 615 kg 1356 lb |
| Fluid capacities - Transmission and hydraulic system: | 20.8 L 22 qt |
| Tires - Front: | R1 Bar: 7-14 R3 Turf: 27x8.5-15 R4 Industrial: 25x8.5-14 R4 Industrial: 27x8.5-15 |
- PTO HP: 19.4
- 3PT Hitch: Category 1
- Transmission Type: Hydrostatic - 2 Range
- HP*: 24.7
- 2WD or 4WD: 4WD
- Cab or Open Station: Open Station
