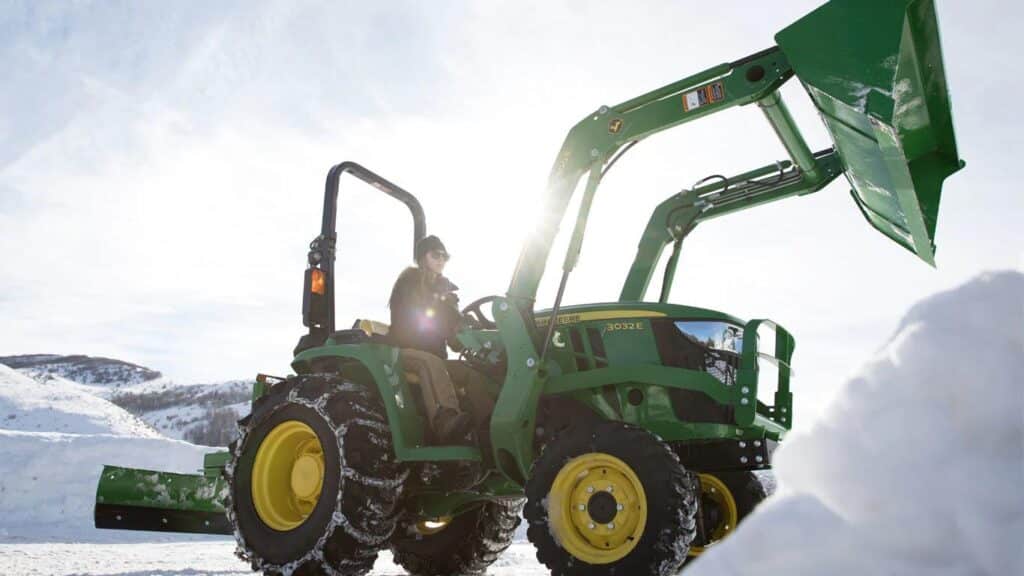

John Deere 3032E Compact Utility Tractor
- Standard four-wheel drive(4WD) for maximum traction
- Hydro transmission with Twin Touch™ pedals for ease of use
- Category 1 3-pt hitch compatible with dozens of implements
Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
iMatch Quick-Hitch (LVB25976)
One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.
The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.
- All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.
NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).
- Upper bushing
- Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
- Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
- Lower bushings
- Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
- Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)
| Engine - Fuel tank capacity: | 28.5 L 7.5 U.S. gal. |
|---|---|
| Electrical - Starter size: | 1.4 kW 1.9 hp |
| Dimensions - Front axle clearance: | 36.3 cm 14.3 in. |
| Key Specs - Power take-off (PTO) power: | 18.6 kW 25 hp |
| Key Specs - Approximate shipping weight (open-station; cab): | 1007.9 kg 2222 lb |
| Transmission - Differential lock: | Yes |
| Engine - Cylinder liners: | Cast-in-block |
| Engine - Number of cylinders: | Three |
| Engine - Manufacturer: | Yanmar |
| Dimensions - Turning radius without brakes: | 2.9 m 9.4 ft |
| Transmission - Left-hand reverser: | No |
| Engine - Cooling system: | Water pump |
| Engine - Rated engine speed: | 2500 rpm |
| Engine - Engine power (gross): | 22.9 kW 31.2 hp |
| Key Specs - Cruise control: | Optional |
| Engine - Type: | Diesel |
| Hydraulics - Remote control valves available: | Up to two (optional) |
| Engine - Lubrication: | Pressurized |
| Engine - Aspiration: | Natural |
| Hydraulics - Pump type: | Dual gear |
| Engine - Injection pump type: | High pressure common rail direct injection |
| Tires - Rear: | Farm - 11.2-24 Turf - 41x14-20 R4 - 15-19.5 R4 - 43x16-20 |
| 3-point hitch - Lift capacity, 24-in. behind link arms: | 615.1 kg 1356 lb |
| Transmission - Brakes: | Wet disc |
| Operator station - Gear shift location - console/floor: | Left-hand side |
| Hydraulics - Type: | Open center |
| Transmission - Axle capacity: | Front 798 kg 1760 lb Rear 1197 kg 2640 lb |
| Key Specs - Standard transmission; forward/reverse: | Hydrostatic transmission (HST) |
| Engine - Air cleaner: | Dual element |
| Key Specs - Wheelbase: | 159.5 cm 62.8 in. |
| Power take-off (PTO) - Control: | Independent |
| Key Specs - Engine power (gross): | 22.9 kW 31.2 hp |
| Power take-off (PTO) - Brake (for mid and rear PTO): | Wet disk |
| Key Specs - Steering hydraulics: | 15 L/min 4 gpm |
| Engine - Family: | EYDXL1.64NDA FYDXL1.64NDA GYDXL1.64NDA |
| 3-point hitch - Type: | Category 1 |
| Transmission - Cruise control: | Optional |
| Engine - Bore and stroke: | 88 x 90 mm 3.46 x 3.54 in. |
| Hydraulics - Pump rated output: | Steering 15 L/min 4 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm |
| Operator station - Rollover protective structure: | Type Foldable ASABE S478 |
| Fluid capacities - Crankcase with filter: | 4.5 L 4.8 qt |
| Electrical - Alternator (12-V): | 55 amp |
| Dimensions - Wheelbase: | 159.5 cm 62.8 in. |
| Engine - Power take-off (PTO) power: | 18.6 kW 25 hp |
| Engine - Engine model: | 3TNV88C-NJT |
| Transmission - Final drive: | Bull Gear |
| Transmission - Creeper: | No |
| Engine - Emissions compliance: | Final Tier 4 |
| Key Specs - Implement hydraulics: | 20.2 L/min 5.3 gpm |
| Operator station - Platform - flat/straddle: | Semi-flat |
| Engine - Engine torque at rated speed: | 87 Nm 64.2 lb-ft |
| Fuel system - Type: | High pressure common rail direct injection |
| Hydraulics - Draft control sensing: | Position control |
| Engine - Compression ratio: | 19.1:1 |
| Transmission - Steering: | Power steering |
| Electrical - Battery size: | 500 CCA |
| Power take-off (PTO) - Standard: | 540 rpm at 2500 rpm |
| Engine - Cylinders/displacement: | 3 / 1.64 L 3 / 100.2 cu in. |
| Transmission - Standard transmission; forward/reverse: | Hydrostatic transmission (HST) |
| Power take-off (PTO) - Clutch: | Wet disk |
| Final drive - Type: | Bull Gear |
| Key Specs - Hitch type: | Category 1 |
| Dimensions - Approximate shipping weight (open-station; cab): | 1007.9 kg 2222 lb |
| Hydraulics - Maximum operating pressure: | 172.4 bar 2500 psi |
| Key Specs - Lift capacity, 24-in. behind link arms: | 615.1 kg 1356 lb |
| Tires - Front: | Farm - 7-14 Turf - 27x8.5-15 R4 - 25x8.5-14 R4 - 27x8.5-15 |
- Cab or Open Station: Open Station
- PTO HP: 25
- HP*: 31.2
- Transmission Type: Hydrostatic - 2 Range
- 3PT Hitch: Category 1
- 2WD or 4WD: 4WD
