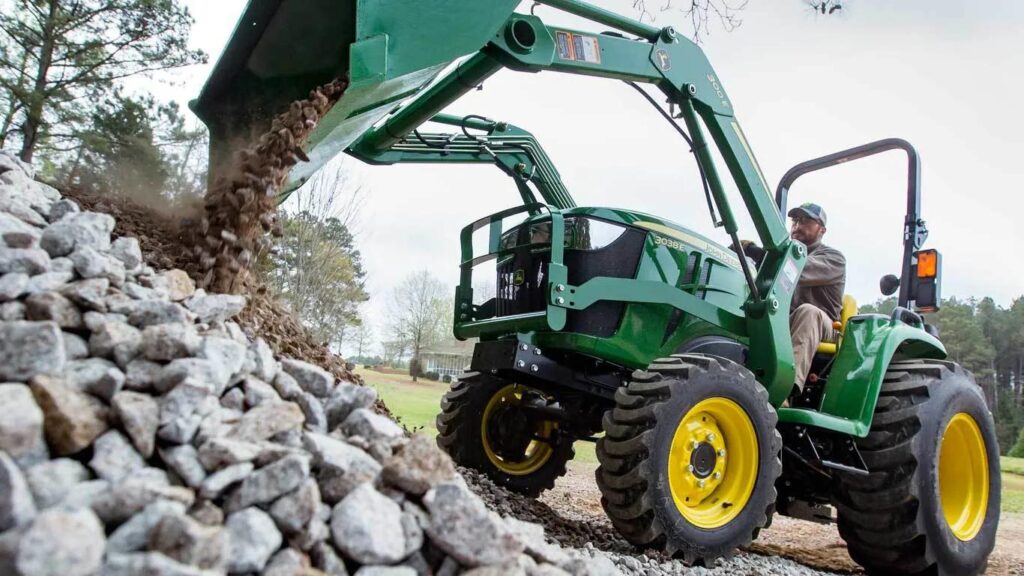

John Deere 3038E Compact Utility Tractor
- Standard four-wheel drive(4WD) for maximum traction
- Hydro transmission with Twin Touch™ pedals for ease of use
- Category 1 3-pt hitch compatible with dozens of implements
Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
iMatch Quick-Hitch (LVB25976)
One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.
The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.
- All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.
NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).
- Upper bushing
- Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
- Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
- Lower bushings
- Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
- Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)
| Transmission - Differential lock: | Yes |
|---|---|
| Hydraulics - Type: | Open center |
| Fluid capacities - Transmission and hydraulic system: | 20.8 L 22 qt |
| Engine - Cylinders/displacement: | 3 / 1.57 L 3 / 95.7 cu in. |
| Final drive - Type: | Spur gear |
| Hydraulics - Draft control sensing: | Position control |
| Key Specs - Implement hydraulics: | 20.2 L/min 5.3 gpm |
| Transmission - Creeper: | No |
| Dimensions - Turning radius without brakes: | 2.9 m 9.4 ft |
| Engine - Power take-off (PTO) power: | 22.4 kW 30 hp |
| Engine - Aspiration: | Turbocharged |
| Engine - Cooling system: | Water Pump |
| Engine - Engine torque at rated speed: | 104.7 Nm 77.2 lb-ft |
| Power take-off (PTO) - Brake (for mid and rear PTO): | Wet disk |
| Operator station - Platform - flat/straddle: | Straddle |
| Engine - Family: | FYDXL1.57TDA EYDXL1.57TDA GYDXL1.57TDA |
| Engine - Emissions compliance: | Final Tier 4 |
| Key Specs - Steering hydraulics: | 15 L/min 4 gpm |
| Power take-off (PTO) - Clutch: | Wet disk |
| Fuel system - Type: | High pressure common rail direct injection |
| Operator station - Gear shift location - console/floor: | Left-hand side |
| Key Specs - Wheelbase: | 1593 mm 62.7 in. |
| Engine - Cylinder liners: | Cast-in-block |
| Final drive - Differential lock: | Yes |
| Power take-off (PTO) - Control: | Independent |
| Key Specs - Hitch type: | Category 1 |
| Key Specs - Approximate shipping weight (open-station; cab): | Open operator station (OOS): 1210 kg 2668 lb Cab: Not applicable |
| Hydraulics - Pump rated output: | Steering 15 L/min 4 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm |
| Engine - Lubrication: | Pressurized |
| Transmission - Axle capacity: | Front 880 kg 1940 lb Rear 1200 kg 2645 lb |
| Tires - Rear: | R1 Bar: 11.2-24 R3 Turf: 41x14-20 R4 Industrial: 15-19.5 R4 Industrial: 43x16-20 |
| Engine - Type: | Diesel |
| Key Specs - Standard transmission; forward/reverse: | Hydrostatic transmission (HST) |
| Transmission - Steering: | Power steering |
| Dimensions - Wheelbase: | 1593 mm 62.7 in. |
| Hydraulics - Remote control valves available: | Up to two (optional) |
| Fluid capacities - Crankcase with filter: | 4.5 L 4.8 qt |
| Transmission - Standard transmission; forward/reverse: | Hydrostatic transmission (HST) |
| Engine - Compression ratio: | 19.1:1 |
| Key Specs - Power take-off (PTO) power: | 22.4 kW 30 hp |
| Engine - Number of cylinders: | Three |
| Engine - Air cleaner: | Dual element |
| Operator station - Rollover protective structure: | Type Foldable |
| Engine - Rated engine speed: | 2500 rpm |
| Power take-off (PTO) - Standard: | Rear - 540 rpm |
| Key Specs - Lift capacity, 24-in. behind link arms: | 615 kg 1356 lb |
| Tires - Front: | R1 Bar: 7-14 R3 Turf: 27x8.5-15 R4 Industrial: 25x8.5-14 R4 Industrial: 27x8.5-15 |
| Transmission - Brakes: | Wet disk |
| Engine - Engine model: | 3TNV86CT-NJT2 |
| Engine - Manufacturer: | Yanmar |
| Engine - Injection pump type: | High pressure common rail direct injection |
| Transmission - Final drive: | Spur gear |
| Hydraulics - Pump type: | Dual gear |
| 3-point hitch - Lift capacity, 24-in. behind link arms: | 615 kg 1356 lb |
| Dimensions - Approximate shipping weight (open-station; cab): | OOS: 1210 kg 2668 lb Cab: Not applicable |
| Key Specs - Cruise control: | Optional |
| Transmission - Cruise control: | Optional |
| Engine - Bore and stroke: | 86 x 90 m 3.4 x 3.54 in. |
| Engine - Engine power (gross): | SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm |
| Electrical - Starter size: | 1.4 kW 1.9 hp |
| Electrical - Alternator (12-V): | 55 amp |
| Dimensions - Front axle clearance: | Minimum: 299 mm 11.8 in. Maximum: 333 mm 13.1 in. |
| Transmission - Left-hand reverser: | No |
| Key Specs - Engine power (gross): | SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm |
| Engine - Fuel tank capacity: | 28.5 L 7.5 gal. |
| Electrical - Battery size: | 500 CCA |
| Hydraulics - Maximum operating pressure: | 172 bar 2495 psi |
| 3-point hitch - Type: | Category 1 |
- Transmission Type: Hydrostatic – 2 Range
- Cab or Open Station: Open Station
- 2WD or 4WD: 4WD
- PTO HP: 30
- HP*: 37.3
- 3PT Hitch: Category 1
