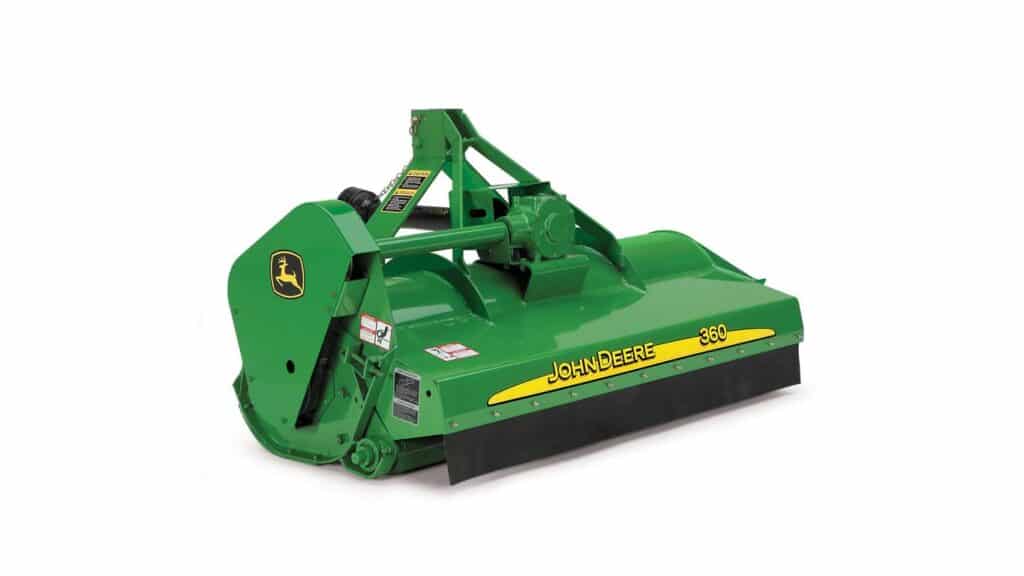

John Deere 360 Flail Mower
- Heavy-duty gearbox and drive shaft
- Heavy-duty hood and end plates
- Reliable, heavy-duty HC section belts
Tractor hookup
3-point hitch on 360 Flail Mower
3-point hitch on 370 and 390 Flail Mowers
All machines have a Category 2/1 3-point hitch. Bushings or reversible pins are included for Category 2/1 compatibility.
The 360, 370, and 390 Mowers with centrally mounted hitches are suited for normal cutting conditions:
- 360 Mower is compatible with quick-coupler Category 1 only.
-
370 and 390 Mowers are compatible with quick-coupler Category 1 and 2.
The 390 Mower with a 30.5-cm or 66-cm (12-in. or 26-in.) hitch offset to the right is ideal for trimming along walls, buildings, trees with low-lying branches, fences, or orchards.
Heavy-duty gearbox and drive shaft
Heavy-duty gearbox
PTO drive shaft
All John Deere flail mowers feature this rugged, heavy-duty gearbox with a continuous 65-hp rating and an intermittent 90-hp rating. Another feature included is a five-year, unlimited-hour warranty.
Base equipment side-slicer knives or optional smooth-cut knives available
Side-slicer knives
Base equipment side-slicer knives are good all-purpose knives. They provide aggressive cutting action in tough conditions.
The side-slicer knife characteristics are as follows:
- Knives are made of heat-treated alloy steel for durability.
- Individual knife weight, along with the centrifugal force created, provides an aggressive cutting action.
- Edges are ground to provide a sharp cutting surface and reduced horsepower requirements.
Rotor
Smooth-cut knives can be ordered as an option:
- Smooth-cut knives utilize the same mountings as the side-slicer knives.
- These optional knives are good for grassy, weedy conditions and are self-cleaning.
- Knives can also be resharpened for added wear life.
Heavy-duty hood and end plates
Heavy-duty hood and end plates
The hood and end plates are designed for heavy-duty applications:
- Hood is made of 0.48-cm (0.188-in.) thick steel to resist denting and wear.
- End plates are made of 0.64-cm (0.250-in.) thick steel to provide structural support and resistance to side thrusts.
- Full-length torque tube helps prevent twisting when operating on uneven ground.
| Machine - Cutting height: | 13 to 127 mm 0.5 to 5 in. |
|---|---|
| Tractor HP Required - Maximum: | 56 kW 75 hp |
| Dimensions - Overall length: | 1 m 40 in. |
| Machine - Hood thickness: | 4.8 mm 0.19 in. |
| 3-Point Hitch - Quick-coupler compatible: | Yes (Category 1 only) |
| Rotor - Diameter: | 114 mm 4.5 in. |
| Weight - Approximate: | 360 kg 794 lb |
| Dimensions - Overall height: | 0.99 m 39 in. |
| Drives - Belts: | Heavy-duty HC section |
| Blades - Number: | 108 (54 pairs) |
| Machine - Cutting width: | 1.5 m 58.5 in. |
| Drives - PTO: | 540 rpm |
| Drives - Gauge roller: | 140 mm 5.5 in. |
| Tractor HP Required - Minimum: | 22 kW 30 hp |
| Rotor - Speed: | 1,850 rpm |
| Blades - Type: | Heat-treated Reversible Side-slice (Optional Smooth-cut Cupped Knives) |
| Dimensions - Overall width: | 1.8 m 69 in. |
- Cutting Width: 4 ft. 10 in. (1.5 m )
- PTO HP: 30 – 75 hp (22 – 56 kW)
- Hitch Category: Cat. 1
