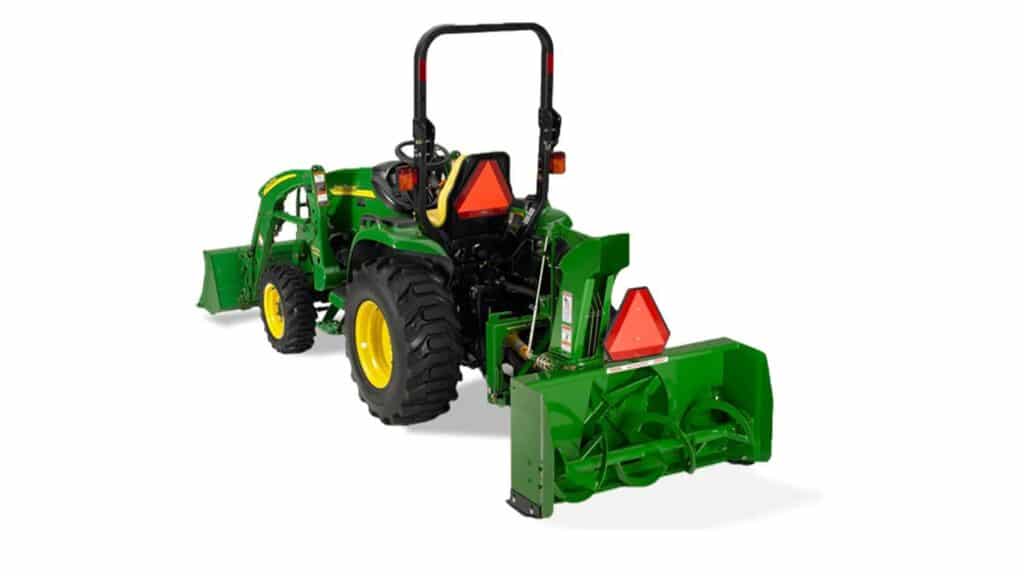

John Deere SB11 Series Snowblowers

Chute deflector and rotation kits for SB11, SB13, and SB21 Series Snow Blowers

Chute deflector and rotation kits allow the operator to change the direction of snow exiting the chute.

Chute rotation can be easily adjusted for versatility

Easily adjust chute rotation

Chute rotation adds versatility by allowing operators to blow snow exactly where they want it.

Standard-equipped manual chute rotation adjustments on the SB11 Series are easily done from the seat of the tractor.

Skid shoes are adjustable for increased life and durability

Adjustability increases durability and life

Adjustable steel skid shoes on the SB11 Series increase the durability and life of the snowblowers.

Multiple hitch capabilities for different uses

iMatch™ quick-hitch compatible

SB11 Series Snowblowers have different hitch capabilities. Models SB1148, SB1154, SB1164, and SB1174 are Category 1 and iMatch compatible. Model SB1184 is Category 1 and iMatch compatible and Category 2 and Quik-Coupler compatible. Model SB1194 is Category 2 and Quik-Coupler compatible.

All SB13 Series models come with a Category 2 3-point hitch. In addition, SB1308, SB1308R, and SB1309R are Category 2 and 3 compatible. The SB13 Series models are all Quik-Coupler compatible.

Impeller blade provides fast snow removal

Enables faster and farther snow removal

Moving snow faster and blowing it farther is simple with four impeller blades on the SB11 Series Snowblowers.

Chute deflector makes snow removal easier and more accurate

Both the manual and hydraulic chute deflectors are beneficial when operating around buildings or down city streets.

An optional electric discharge chute is available for models SB1154 and SB1164 (cab tractors only).

Manual chute deflector is standard equipment

Manual chute deflector adjustment shown

The SB11 Series Snowblowers come with a manual chute deflector adjustment.

Hydraulically controlled chute deflector is an optional feature

Optional hydraulically controlled chute deflector

The hydraulically controlled chute deflector is available as an option. Controlled from the seat of the tractor, the chute deflector allows the operator to effectively control snow discharge accuracy.
